Model Explorer UI

Reno comes with a Panel web application for experimenting with models and constructing mini narrative dashboards around specific results.

Running

Reno installs with a reno command, which runs the panel server (by default on port 5006)

The full set of CLI args can be found by running reno -h:

usage: reno [-h] [--version] [--workspace-path WORKSPACE_PATH] [--url-root-path ROOT_PATH] [--port PORT] [--address ADDRESS] [--liveness-check] [--websocket-origin WEBSOCKET_ORIGIN]

options:
  -h, --help            show this help message and exit
  --version             Print out Reno library version.
  --workspace-path WORKSPACE_PATH
                        Where to store and load saved explorer workspaces and models from.
  --url-root-path ROOT_PATH
                        Root path the application is being served on when behind a reverse proxy.
  --port PORT           What port to run the server on.
  --address ADDRESS     What address to listen on for HTTP requests.
  --liveness-check      Flag to host a liveness endpoint at /liveness.
  --websocket-origin WEBSOCKET_ORIGIN
                        Host that can connect to the websocket, localhost by default.

The --workspace-path argument refers to a cache or save directory to use for persisting a particular workspace session/explorer views. By default this is set to ./work_sessions. Inside the workspace path directory, any Reno model files saved within the models/ directory will populate new workspace buttons in the upper left of the interface to allow quickly starting new workspace.

To populate this directory with Reno’s packaged example models, one could run:

python -c "from reno.examples.lotka_volterra import predator_prey; predator_prey.save('work_sessions/models/predator_prey.json')"
python -c "from reno.examples.one_compartment import one_compartment_model; one_compartment_model.save('work_sessions/models/one_compartment.json')"
python -c "from reno.examples.tub import tub; tub.save('work_sessions/models/tub.json')"
python -c "from reno.examples.urban_growth import urban_growth; urban_growth.save('work_sessions/models/urban_growth.json')"

Interface

Workspace management

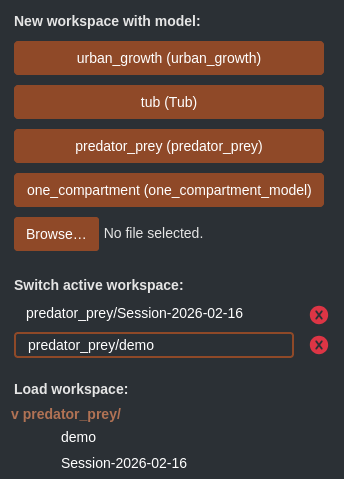

The left sidebar contains three sections for creating, switching, and loading workspaces. A workspace is an individual exploration interface for a particular model. The buttons along the top (corresponding to any found models in the workspace directory models/ folder) create a new active workspace for the specified model. A new model can be uploaded and used by clicking on the browse button and selecting your local model json file.

Active workspaces are all workspaces currently open in memory - this middle section can be used for switching back and forth between several models or explorations. Use the x buttons to close them out. Note that workspaces are not automatically saved, so be sure to use the save button in the top right in the header of the interface. (The textbox to the left of this button can be used for changing the path and name of the saved session.)

Any previously saved workspace shows up in a file-explorer-like view in the bottom of the workspace management section. Clicking on any of these will reload that workspace into your active workspaces, and populate the main view.

Model configuration

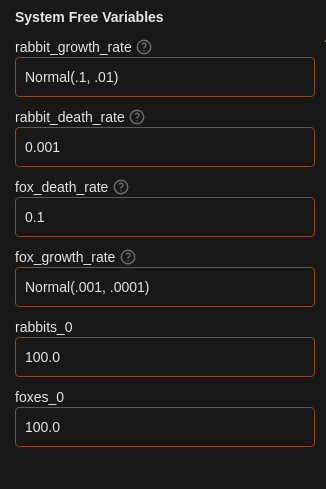

Parameterizing the model is done in the System Free Variables section. Every free variable/initial stock condition gets a corresponding textbox. Anything entered here can be parsed into direct values like 42, 13.7, any string of Reno’s lisp-like equation syntax such as (+ 2 3) (this syntax is shown on the Math in Reno page, and corresponding syntax for any given operation is listed on the corresponding op page from reno.ops, labeled as “String notation”), or directly referring to any distribution class and parameters, such as Normal(13.0, std=1.0).

Sampling and observations

Below the model configuration are sampling parameters, buttons to execute simulation runs, and a section for adding observations.

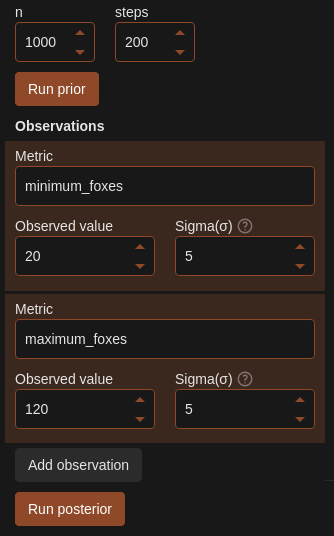

The n and steps boxes control the number of samples run and how many steps each sample is run for. The “Run prior” button will start a simulation based only on prior probability distributions - it will ignore any entered observed data.

The “Add observation” button creates a new set of fields where you can select a metric to specify an observation for, along with the observed value itself and the sigma or uncertainty around the value. (See Bayesian Inference for more details on this process.)

The “Run posterior” button will run the Bayesian inference process and output updated probability distributions for the provided observations.

Model runs and tab controls

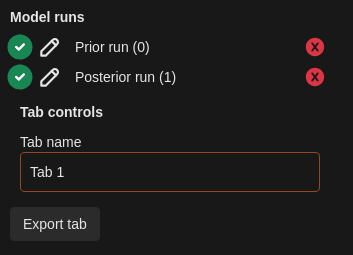

The right upper side of the interface contains a list of all previous prior/posterior simulation runs, along with toggle buttons to select or deselect them for visualizations within the current tab, edit buttons to modify the name of the run (this is reflected in the legends of the plots), and the ability to delete specific runs. Additionally, the name of the tab can be modified here.

The “Export” button generates both a PDF and raw HTML file containing the contents of the current tab, and will display buttons for downloading both of these.

Tab contents

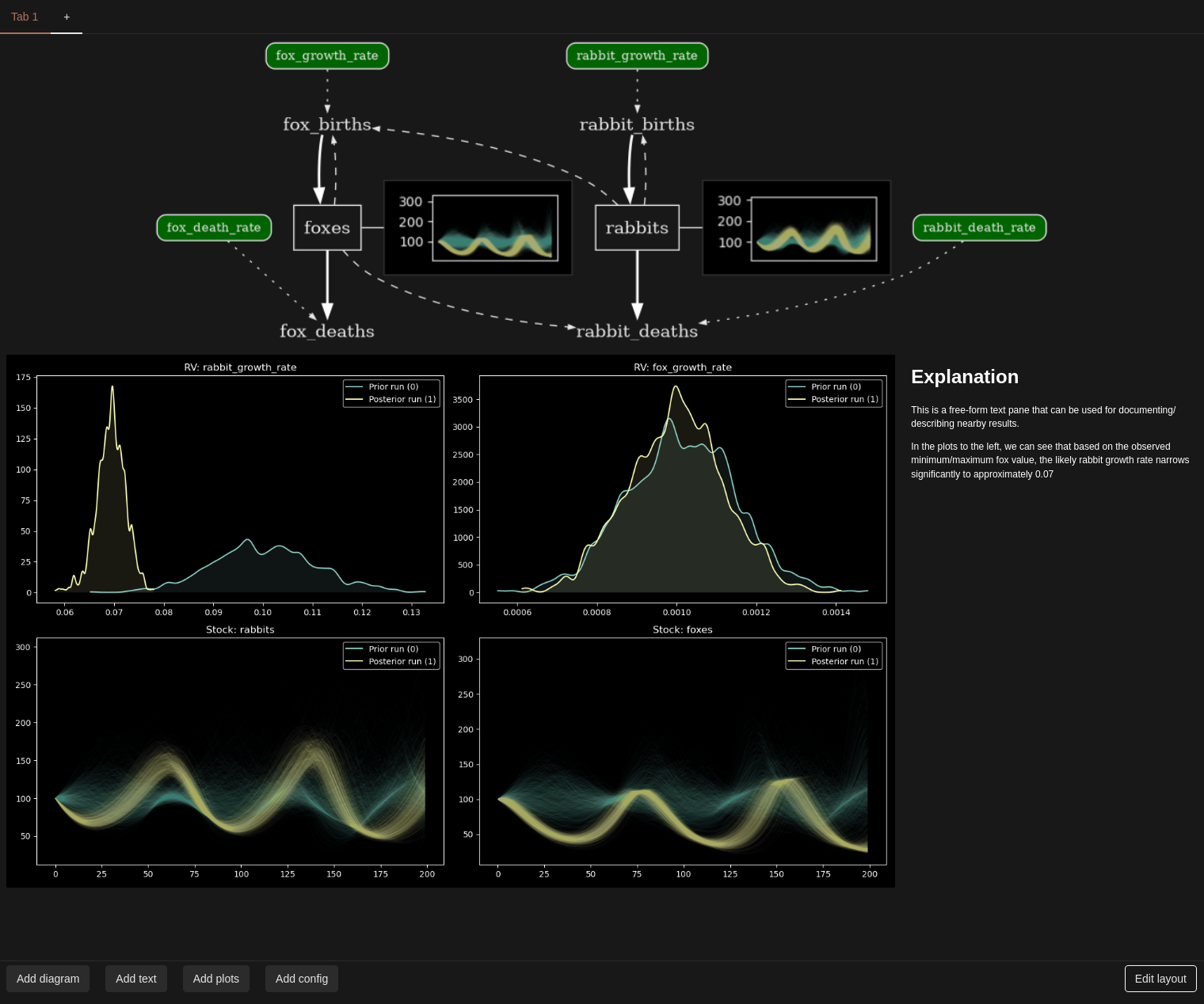

The main section of the view is a tabbed interface where the user can add visualization types and customize their layout. Visualizations or “panes” can be added by clicking on their corresponding type button in the bottom controls row. Panes can be resized and moved around by toggling the “Edit layout” button and clicking and dragging.

Pane configuration

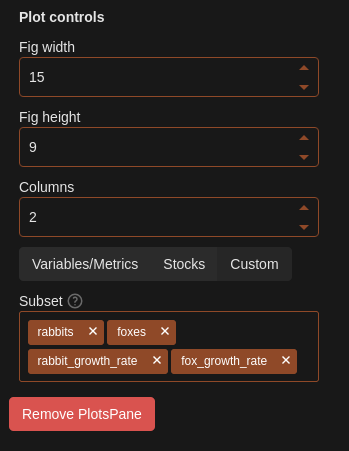

Clicking on any pane within the tab contents populates the bottom right with controls to configure the selected pane. This is different for each pane type, but for the selected plots pane, the user can control the grid size of the plots and select the subset of variables from the model to include.
