Adaptive Mesh Refinement

AdditiveFOAM generates refinementField from two criteria: temperature above refinementTemperature and intersection with buffered, positive-power portions of the future scan path. OpenFOAM’s refiner uses this field to refine and coarsen the mesh; its loadBalancer can then redistribute the changed mesh between MPI processes.

The selected refinement model determines the future scan-path interval represented by refinementField:

Refinement model	Scan-path interval
timeStep	The next CFD time step
uniformTimeIntervals	The next interval in a fixed partition of the scan duration
targetCellLoad	A variable look-ahead interval chosen to approach a target number of cells per process
none	No AdditiveFOAM refinement marker

The top-level refinement dictionary is optional and defaults to model none. Users select the model and source-specific buffer sizes in constant/heatSourceDict, then configure refinement limits and optional load balancing in constant/dynamicMeshDict.

To enable AMR:

1. Select timeStep, uniformTimeIntervals, or targetCellLoad in constant/heatSourceDict and provide one buffer for each named heat source.
2. Configure OpenFOAM’s refiner in constant/dynamicMeshDict, including refineInterval 1, maxRefinement, and maxCells.
3. Add the loadBalancer and a redistribution method in system/decomposeParDict when the refined mesh should be redistributed in parallel.
4. During the run, inspect the reported cell count and load imbalance. With dumpLevel true, reconstruct and visualize cellLevel and refinementField in ParaView to confirm where refinement is requested and applied.

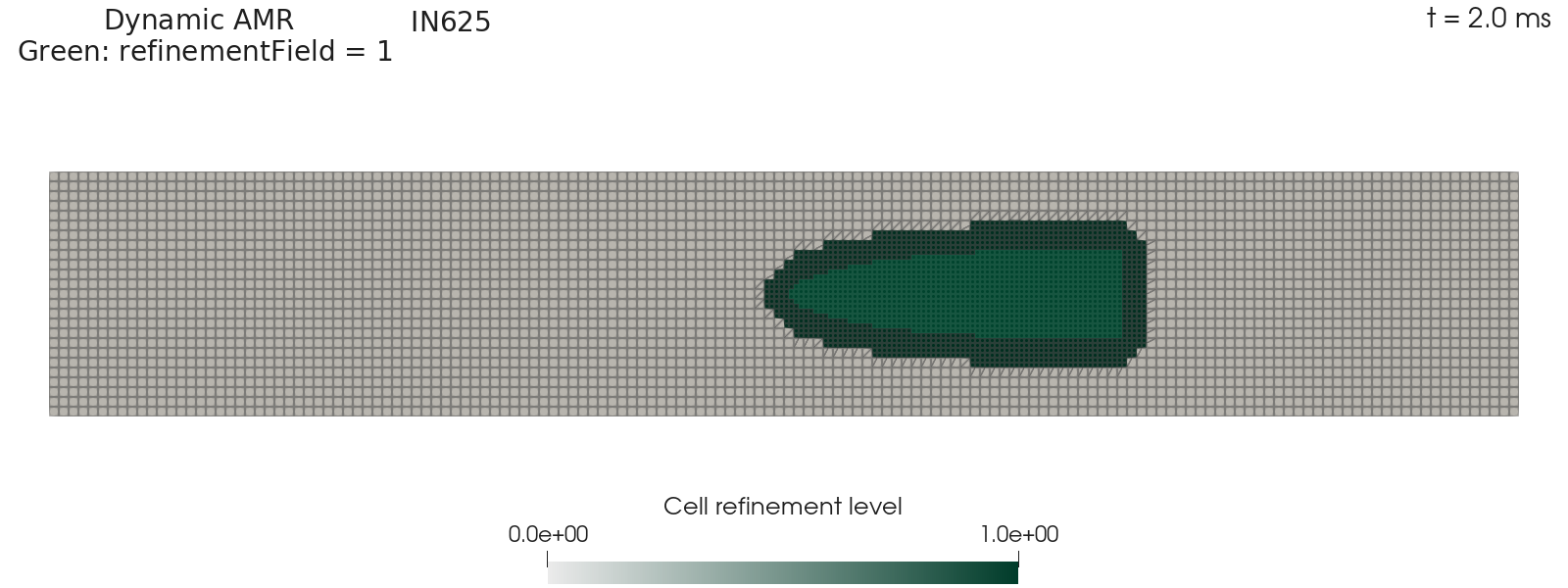

Dynamic AMR in the AMB2018-02-B case. Green identifies cells selected by refinementField; the mesh color and edges show the resulting cellLevel. The OpenFOAM refiner is evaluated every time step with refineInterval 1.

Active models use the same flat nested-dictionary convention as the heat-source interface:

refinement
{
    model                 timeStep;
    refinementTemperature 1000;
    buffers
    {
        beam (85e-6 85e-6 100e-6);
    }
}

Entry	Required	Default	Meaning
model	No	none	none, timeStep, uniformTimeIntervals, or targetCellLoad
refinementTemperature	No	Disabled (GREAT)	Set \(R_c^T=1\) where \(T_c\geq T_{\mathrm{ref}}\)
buffers	Yes for active models	—	One scan-path buffer per source

maxRefinement is read from constant/dynamicMeshDict and is required by active models.

Refinement criterion

Let \(R_c\in\{0,1\}\) be refinementField in cell \(c\). At each refinement update,

\[R_c=\max\left(R_c^T,R_c^S\right),\]

where the temperature indicator is

\[R_c^T=H(T_c-T_{\mathrm{ref}})\]

and \(H\) is the Heaviside function with \(H(0)=1\). The scan-path indicator \(R_c^S\) is one when the cell overlaps at least one buffered, positive-power path segment in the selected future time interval.

For a path segment from \(\mathbf{p}_0\) to \(\mathbf{p}_1\), let

\[L_{xy}=\sqrt{(p_{1x}-p_{0x})^2+(p_{1y}-p_{0y})^2}.\]

For a nonzero horizontal displacement, the scan frame is

\[\mathbf{e}_0=\frac{(p_{1x}-p_{0x},p_{1y}-p_{0y},0)} {L_{xy}}, \quad \mathbf{e}_1=(-e_{0y},e_{0x},0), \quad \mathbf{e}_2=(0,0,1).\]

When \(L_{xy}\) is smaller than OpenFOAM small, including a stationary dwell, the implementation instead uses

\[\mathbf e_0=(1,0,0),\qquad \mathbf e_1=(0,1,0),\qquad \mathbf e_2=(0,0,1),\]

which avoids division by zero and gives the stationary buffer the configured Cartesian orientation.

The oriented buffer has centre \(\mathbf{m}=(\mathbf{p}_0+\mathbf{p}_1)/2\) and half-lengths

\[\mathbf{L}= \left(\frac{\|\mathbf{p}_1-\mathbf{p}_0\|_{xy}}{2}+b_0, b_1,b_2\right),\]

where (b0 b1 b2) is (endpointPadding transverseHalfSpan verticalHalfSpan). For cell axis-aligned bounding-box half-lengths \(\mathbf{h}_c\), its projected radius on buffer axis \(k\) is

\[r_{c,k}=\sum_{j=1}^{3}h_{c,j}|e_{k,j}|.\]

Here \(\mathbf{p}_0\) and \(\mathbf{p}_1\) are the segment endpoints, \(\mathbf{e}_0\) is the horizontal segment direction, \(\mathbf{e}_1\) is its in-plane normal, and \(\mathbf{e}_2\) is the vertical direction. The vector \(\mathbf{m}\) is the segment midpoint, \(L_k\) is the buffer half-length along axis \(k\), \(h_{c,j}\) is the cell bounding-box half-length along Cartesian direction \(j\), and \(r_{c,k}\) is that box’s projected half-width on axis \(k\). The notation \(\|\cdot\|_{xy}\) denotes horizontal Euclidean length.

The overlap condition used to set \(R_c^S=1\) is

\[\left|(\mathbf{c}_c-\mathbf{m})\cdot\mathbf{e}_k\right| \le L_k+r_{c,k},\qquad k=0,1,2,\]

where \(\mathbf{c}_c\) is the centre of the cell bounding box. Only path intervals with \(P_b>0\) enter this union. Cell marking is union based: a cell that overlaps multiple path segments or source buffers is marked and counted once, and a path cell already marked by temperature is not counted again as newly added scan-path volume. The OpenFOAM refiner consumes \(R_c\); mesh redistribution is a separate operation.

In the indicator equations, \(T_c\) is the cell temperature, \(T_{\mathrm{ref}}\) is refinementTemperature, \(R_c^T\) is the temperature indicator, \(R_c^S\) is the scan-path indicator, and \(P_b\) is the power of source \(b\).

targetCellLoad

Select targetCellLoad when the future scan-path buffer should expand or contract in response to a desired mesh size per MPI process. Set targetCellsPerProc to the intended average workload and use nBufferVolumes to retain a minimum amount of upcoming path. The model adjusts its look-ahead time after each refinement update; maxTargetVolumeGrowth and maxTargetVolumeShrink limit how quickly that marked volume changes.

In constant/heatSourceDict:

refinement
{
    model                 targetCellLoad;
    refinementTemperature 1000;

    buffers
    {
        beam (85e-6 85e-6 100e-6);
    }

    targetCellsPerProc        5000;
    nBufferVolumes            4;
    maxSearchIter             30;
    timeTolerance             1e-6;
    initialTargetVolumeFactor 0.5;
    maxTargetVolumeGrowth     1.2;
    maxTargetVolumeShrink     0.8;
    postScanUpdateInterval    10;
}

Let \(N\) be the global cell count, \(N_p\) the number of MPI processes, \(\overline V=V_\Omega/N\) the mean cell volume, and \(L_{\max}\) the maximum refinement level. Refining one cell through all levels adds

\[M=\max\left(2^{3L_{\max}}-1,1\right)\]

cells. For source-buffer half-lengths \(\mathbf{b}_s\), the minimum projected volume is

\[V_{\min}=n_{\mathrm{buf}}\sum_s8b_{s,0}b_{s,1}b_{s,2}.\]

Here \(V_\Omega\) is the mesh-domain volume, \(M\) is the maximum cell-count increase per selected cell, \(s\) indexes the heat sources, \((b_{s,0},b_{s,1},b_{s,2})\) are their buffer half-lengths, and \(n_{\mathrm{buf}}\) is nBufferVolumes.

The minimum corresponding cell increment is \(N_{\min}=MV_{\min}/\overline V\). Consequently, the requested cells per process are replaced by

\[N_{\mathrm{pp}}^{\star}=\max\left[N_{\mathrm{pp}}, \left\lfloor\frac{N+N_{\min}}{N_p}\right\rfloor\right].\]

Here \(N_{\mathrm{pp}}\) is targetCellsPerProc, \(N_{\mathrm{pp}}^{\star}\) is its integer, minimum-volume-adjusted value, and \(N^{\star}=N_pN_{\mathrm{pp}}^{\star}\) is the corresponding global target. The floor records the positive scalar-to-label conversion performed by the implementation. With initial factor \(f_0\) equal to initialTargetVolumeFactor, the initial target refinement volume is

\[V_R^{(0)}=\max\left[ f_0\overline V\frac{\max(N^{\star}-N,0)}{M},V_{\min}\right].\]

At update \(m\), define the cell-count ratio

\[r^{(m)}=\frac{N_{\mathrm{pp}}^{\star}}{N^{(m)}/N_p}.\]

The target volume update is

\[V_R^{(m+1)}=\max\left[ V_R^{(m)}\operatorname{clip}_{[f_{\mathrm{shrink}},\,f_{\mathrm{grow}}]} \!\left[r^{(m)}\right], V_{\min}\right].\]

Here \(N^{(m)}\) is the observed global cell count, \(r^{(m)}\) is the target-to-observed cell-count ratio, and \(V_R^{(m)}\) is the target marked volume at refinement update \(m\). The quantities \(f_{\mathrm{shrink}}\) and \(f_{\mathrm{grow}}\) are maxTargetVolumeShrink and maxTargetVolumeGrowth, respectively.

At an update, markTemperature first defines the existing refine volume

\[V_T=\sum_c V_cR_c^T.\]

The subsequent path search adds only cells not already temperature-marked and not already selected by an earlier source or segment. Let \(V_S(t,t_R)\) be this newly added union volume. Starting at the current time \(t\), the look-ahead endpoint \(t_R\) is the earliest positive-power path-event time for which both

\[V_T+V_S(t,t_R)\ge V_R^{(m+1)},\qquad V_S(t,t_R)\ge V_{\min}\]

hold. Event intervals are accumulated in time order; the final interval is resolved by bisection to timeTolerance or maxSearchIter.

Here \(V_c\) is cell volume, \(V_T\) is the existing temperature-marked volume, \(V_S\) is the additional union of path-marked cells, \(t\) is the current time, and \(t_R\) is the selected look-ahead endpoint. This distinction prevents overlap between temperature and path regions—or among multiple sources—from inflating the measured marked volume.

Mesh refinement and load balancing

In constant/dynamicMeshDict:

topoChanger
{
    type              refiner;
    libs              ("libfvMeshTopoChangers.so");
    refineInterval    1;
    field             refinementField;
    lowerRefineLevel  0.1;
    upperRefineLevel  10;
    nBufferLayers     5;
    maxRefinement     1;
    maxCells          20000000;
    dumpLevel         true;
}

distributor
{
    type                    loadBalancer;
    libs                    ("libfvMeshDistributors.so");
    redistributionInterval  10;
    maxImbalance            0.10;
}

refineInterval must be 1 for the AdditiveFOAM refinement models. The OpenFOAM refiner therefore evaluates the updated refinementField every CFD time step. maxRefinement supplies \(L_{\max}\) in the equations above. maxCells bounds the global mesh size, and redistributionInterval is measured in time steps.

The load balancer reads its distributor from system/decomposeParDict:

numberOfSubdomains 8;

method scotch;

distributor zoltan;
libs ("libzoltanRenumber.so");

zoltanCoeffs
{
    lb_method   graph;
    lb_approach repartition;
}

For processor CPU-load estimates \(C_p\), OpenFOAM defines the average \(\overline C=N_p^{-1}\sum_pC_p\) and a conservative maximum \(C_{\max}\) from the maximum base-CFD and registered load components. Redistribution occurs when

\[I=\frac{C_{\max}-\overline C}{\overline C} >I_{\max},\]

where \(I_{\max}\) is maxImbalance. Zoltan operates only in parallel and requires libzoltanRenumber.so; lb_approach repartition computes a new weighted decomposition from the current one.

Here \(p\) indexes MPI processes, \(C_p\) is the estimated load on process \(p\), \(\overline C\) is the process-average load, \(C_{\max}\) is the conservative maximum load, and \(I\) is the relative load imbalance.

timeStep

Select timeStep when refinement should cover only the positive-power path traversed during the next CFD step. This gives the shortest look-ahead interval and adds no model-specific entries to refinement.

At time \(t^n\), this model evaluates the marker over \([t^n,t^n+\Delta t]\):

\[R_c=\max\!\left[H(T_c-T_{\mathrm{ref}}),R_c^S(t^n,t^n+\Delta t)\right].\]

Here \(R_c^S(t_0,t_1)=1\) if cell \(c\) intersects the oriented buffer of any positive-power scan-path segment active in \([t_0,t_1]\), and is zero otherwise. The segment–cell intersection test is defined in Refinement criterion.

uniformTimeIntervals

Select uniformTimeIntervals when the scan should be divided into a fixed number of equal refinement windows. A smaller intervals value produces a longer look-ahead window and a larger simultaneously refined path volume; a larger value produces shorter windows. Configure the required count with:

refinement
{
    model                 uniformTimeIntervals;
    refinementTemperature 1000;
    buffers
    {
        beam (85e-6 85e-6 100e-6);
    }
    intervals 100;
}

intervals must be greater than zero. A zero or negative value is a fatal input error.

For scan end time \(t_e\), start time \(t_s\), and intervals \(N_I\), the marker interval is

\[\Delta t_R=\frac{t_e-t_s}{N_I}.\]

Here \(\Delta t_R\) is the uniform refinement-update duration and \(N_I\) is the configured number of intervals.

At the \(j\)th update it evaluates \(R_c^S(t_j,t_j+\Delta t_R)\). After \(t_e\), \(R_c^S=0\) and the scheduled update contains only \(H(T_c-T_{\mathrm{ref}})\), permitting cells below the temperature threshold to be selected for coarsening.

none

none disables calculation of \(R_c\).

The ExaCA function object aborts if it receives a dynamic mesh redistribution event. It supports refinement on a fixed processor decomposition, but it cannot be combined with runtime load balancing.
